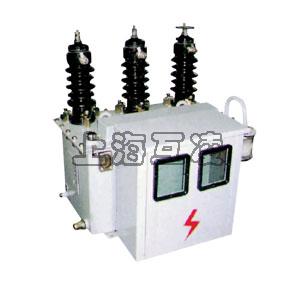

JLS-10高壓計量箱

交貨周期：2個工作日

Delivery Detail: 2DAYS

簡介Description

本產品由組合互感器和計量?jī)x表箱組成，組合互感器由兩臺電壓互感器和兩臺電流互感器組裝在一起而成。計量?jī)x表箱內配有D86系列三相電度表和保險裝置，單向計量時配一塊有功電度表和一塊無功電度表，雙向計量時配二塊有功電度表和兩塊無功電度表。

 The combined transformer (another name is metering tank) is one kind of outdoor power measuring device, which is composed of two sets single-phase wholly insulated voltage transformers, forming three-phase V/V wiring, and two current transformers are separately series connected to A and C phase. The 10kv CT PT combined units is one upgraded product based on old product of same kind, just adding moisture-proof device onto oil tank's cover, which could effectively prevent external humidity from entering into oil, so as to prolong service life of product, while, compared with old product, its advantage contains larger capacity, smaller volume and weight, simplifying installing.

JLS-6、10型三相油浸式戶外高壓電力計量箱（以下簡稱計量箱）定電壓為10kV，額定頻率為50-60Hz的三相交流網路上作電能計量用，由組合互感器和電表箱兩部分組成。

This product is applied to certain outdoor circuit of AC50-60Hz, rated volt being 10kV or lower, to be used for metering of current, voltage and electric energy etc. this product is suitable for rural outdoor transformer substation, miniature transformer station and substation of industrial enterprise etc. Adding active and reactive energy meter onto combined transformer is named as high volt power metering tank.

產品名稱：JLS-10高壓計量箱

型號：JLS-10
